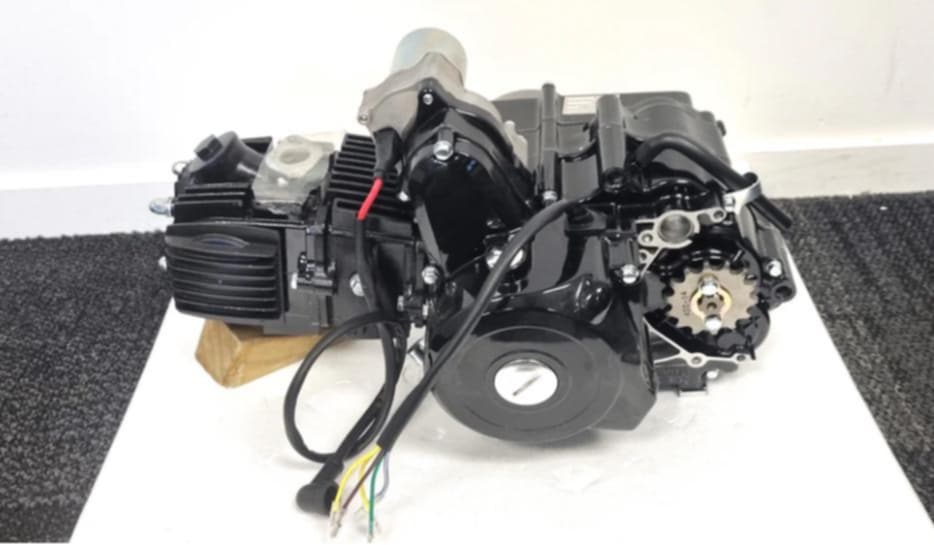

This brand new Chinese 110cc engine will fit just about any 70cc, 90cc, 110cc and even 125cc Chinese ATV or Go Cart that are electric start, automatic intake manifold bold gaskets. This is a great upgrade or replacement engine for your vehicle because it is very easy to install and takes much less time than troubleshooting and diagnosing! This engine has an electric starter motor which is located on the top of the engine, so extra attention must be used when replacing an engine on some quads with a starter on the bottom of the engine. In those cases, this engine may not fit into the frame or may not clear the gas tank if there is no room for the starter on the top.
*Specification*
Max. Power: 5kW/7500 (r/min) Max. Torque: 6.5/5500Nm(r/min) Compression Proportion: 8.8: 1 Bore X Stoke: 52mm X 49.5mm Min Oil Consumption: 367(g/kw. H) Start: Electricity start Ignition: CDI Front Drive Sprocket: 420 14T
Overall measurement: approx. 450x300x260mmH. it comes with accessories (Inlet Manifold and Gasket Seal)
